ET4255-HL Hazardous Location

The KBIM2-IS is a full QWERTY PC keyboard with integral mouse for use in industrial environments. The unit is intrinsically safe, protected via safety barriers and is suitable for use in Zone 0 hazardous locations.

The KBIM2-IS is fully welded from stainless steel. The membrane is covered with a conductive stainless steel shim to prevent static build up.

View Product

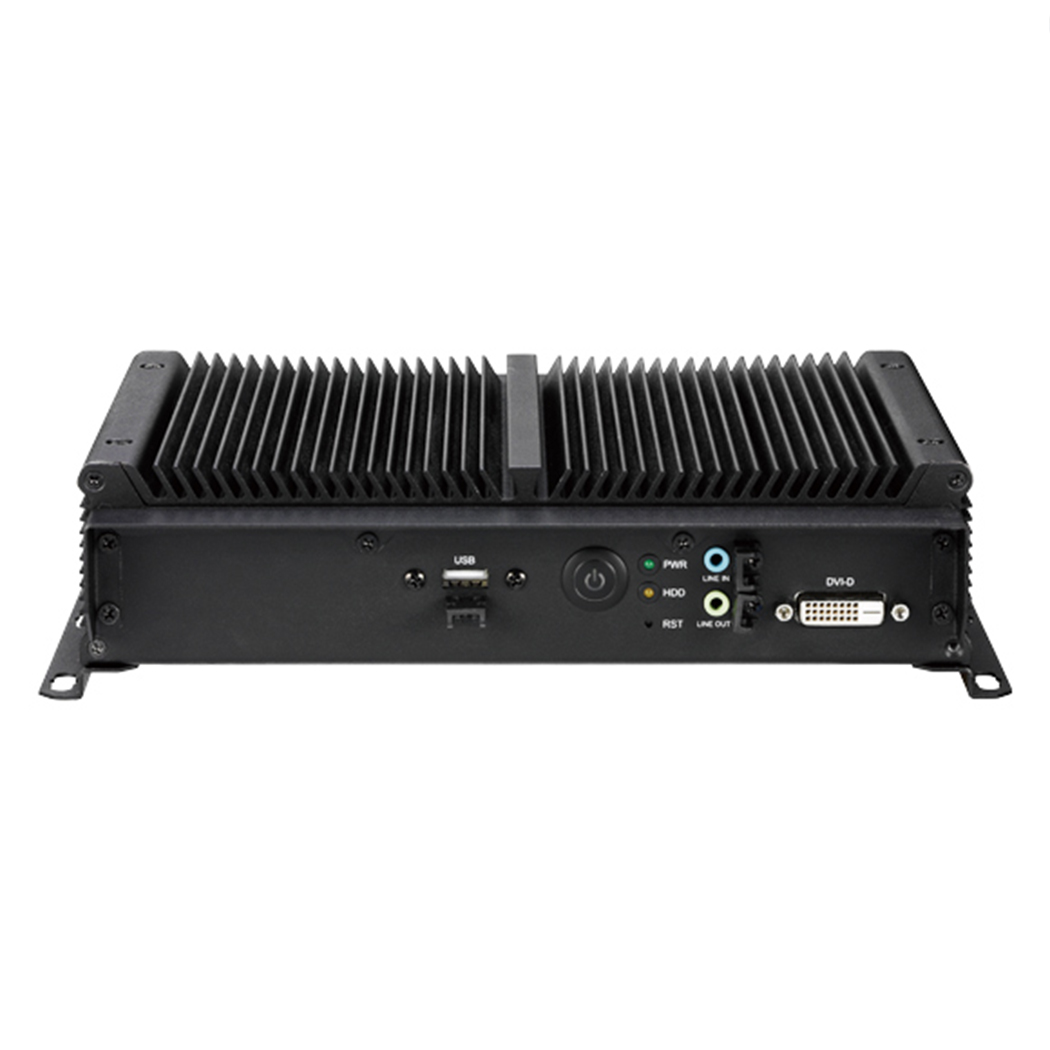

Marine Cerified Fanless Computer

APC Technology’s preferred supplier Nexcom manufacture a marine certified fanless computer which can be purchased as a standalone unit or integrated into a bespoke solution. The unit features the Intel® Core i7-4650U/ i5-4300U processor with low power consumption and deliver a reliable, durable, high-performance platform of wide versatility for use in maritime and offshore environments. It has an isolated RS-232/422/485 port, four gigabit Ethernet LAN ports, five USB posts, and also supports dual independent display through a DVI-D and a DVI-I outputs.

A variety of configurations are available (CE-HW series). All options are designed with a wide -15°C to 70°C temperature range, supports 24VDC power input, and come with a fanless minimalistic enclosure designed. It features a rugged chassis proven against best anti-vibration, providing a most reliable platform even in harsh environments. The CE-HW series computers are compliant to IEC-60945 maritime standards.

  • Onboard Intel® Core™ i7-4650U/i5-4300U processor
  • 4 Gigabit Ethernet
  • 1x DVI-D and 1x DVI-I display output
  • 3 USB 2.0, 2 USB 3.0
  • 1 RS232/422/485 isolated
  • DDR3L 8GB/ M.2 SATA 128GB
  • Built in 24VDC power input
  • IEC-60945 maritime standards compliance
I/O Interface-Front DisplayPort: 1x DVI-D portUSB: 1x USB 2.01x Mic-in and 1x Line-outPower status/HDD status LEDsPower on/off switchReset button
I/O Interface-Rear Ethernet: 4x RJ452nd DisplayPort: 1x DVI-I portUSB: 2x USB 2.0, 2x USB 3.0COM #1: 1x RS232/422/485DC power input connector: 3-Pin Phoenix terminal blocks
Device 1x SATA M.2 connector, 128G M.2 SATA (default)1x mini-PCIe connector
Power Requirements DC power input:
– Input voltage: 24VDC
– Reverse polarity protection
– Galvanic isolated
– Power consumption: 20W to 35W
Mechanical & Environment Fanless system designPantone black RAL9005, extruded and painted aluminum housingIP protection: IP20 top coverVibration
– 1Grms @ random condition, 5~500Hz, 2hr/axis (operating/non-operating)
Shock
– IEC 68 2-27
– 20G @ wall mount, half sine, 11ms
Operating temperature: -15°C to 70°CStorage temperature: -25°C to 75°COperating humidity: 10%~90% relative humidity, non-condensingDimension: 250 x 164.4 x 57.9 mmWeight: 3 KG







  • CE approval
  • FCC Class A
  • CCC approval
  • IEC-60945 maritime standards compliance

For more information on this product and to talk to us about your custom solution, call us on 8363 0400, or send us an enquiry.
